Budget solution for laser cutting 3000W - in stock

Model: SMART E Series

Category: Laser Cutting Machine

Brand Name: HG Smart

Laser power: 3000W

Uses: It can cut stainless steel, carbon steel, galvanized sheet, electrolytic sheet, brass, aluminum, various alloy sheets, rare metals and other metals.

Smart series is the most cost effective laser cutting machine solution including different power(1000w, 1500w, 2000w) for cutting steel, aluminum, titanium, alloys, brass, copper, iron and etc. Now this budget laser cutting machine offers low price with the best service and support.

Budget laser cutting machine Parameter

Machine Model

SMARTE 3015

Cutting Area (L×W)

3000mm×1500mm

Laser Source

Fiber & 3000W

CNC System
FSCUT 1000
Laser Cutting Head
F125mm
Max Moving Speed

80m/min, Acceleration up to 1.0G

Position Accuracy (X and Y axis)
0.02mm
Reposition Accuracy (X and Y axis)
0.03mm
Power Supply Requirement
380V 50/60Hz 35KVA
Machine weight
≤2500 Kg
Appearance size
4550mm×2280mm×2100mm

Budget laser cutting machine Video

Features of Budget laser cutting machine

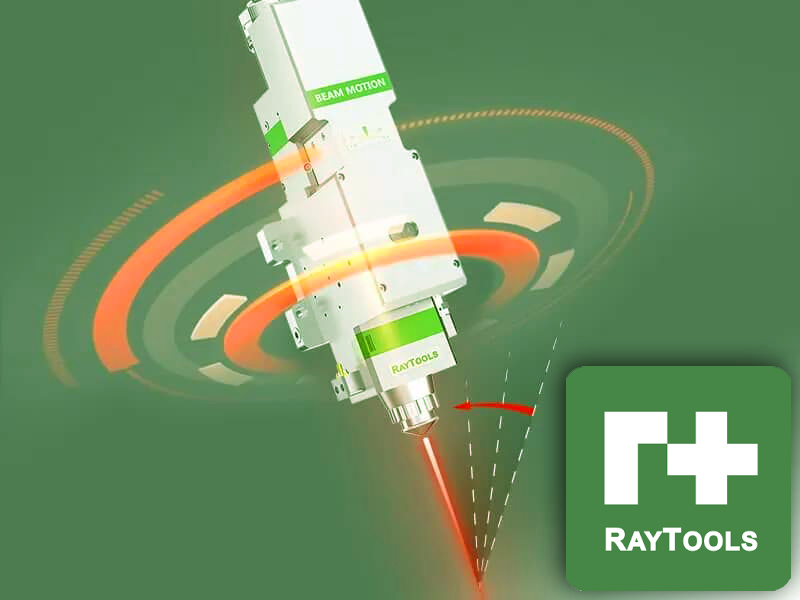

Without Manual Focusing, Autofocus Laser Cutting Head

The software automatically adjusts the focusing lens to achieve automatic perforating and cutting of various thickness plates. The speed of automatically adjusting the focus lens is ten times faster than manual adjustment.

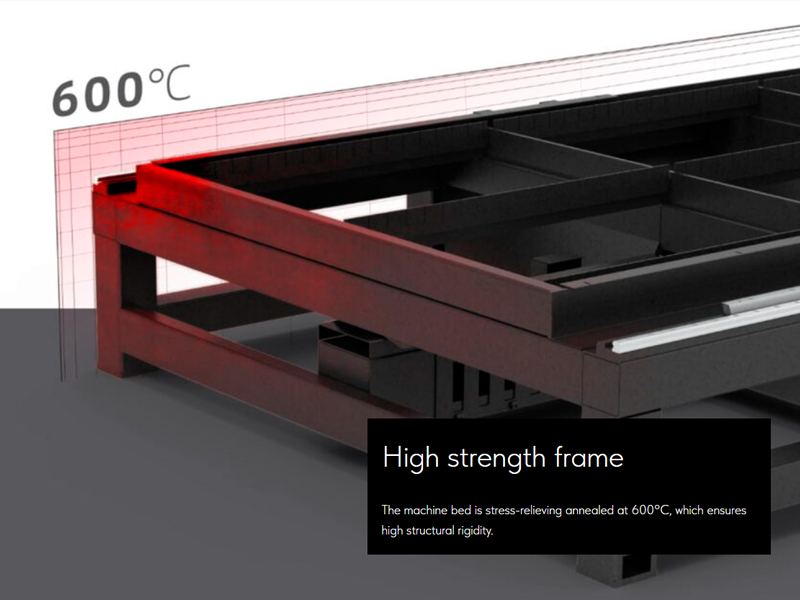

Laser Cutting Machine Welded Bed

The high strength machine bed is treated with a stress relief annealing method at 600°C, which results in a strong structure rigidity; integral mechanical structures have the advantages of small deformation, low vibration, and extremely high precision.

Servo and Motor

JAPAN Fuji servo high speed srvo motor
Effectively reduce beam speed, make cutting and machine more stable, and extend machine life.

Active Anti-collision Function

Effectively reduce the damage rate of laser heads, help you save maintenance cost.

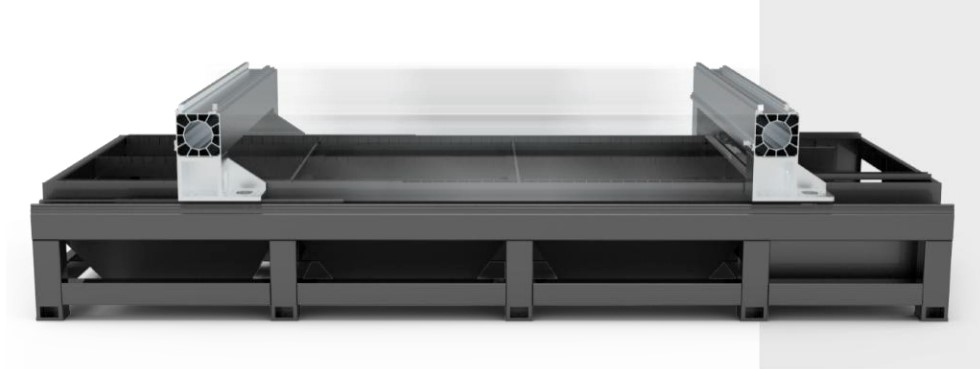

Beam made of cast aluminum

Aluminum monolithic cast beam, light weight, high strength, no deformation Light crossbeams, which are molded and framed using integral steel mold and die-casting technology, give equipment a high operation speed, improving processing efficiency and quality.

High speed

The lite crossbeam can ensure the machine have high moving speed and improve the processing efficiency
