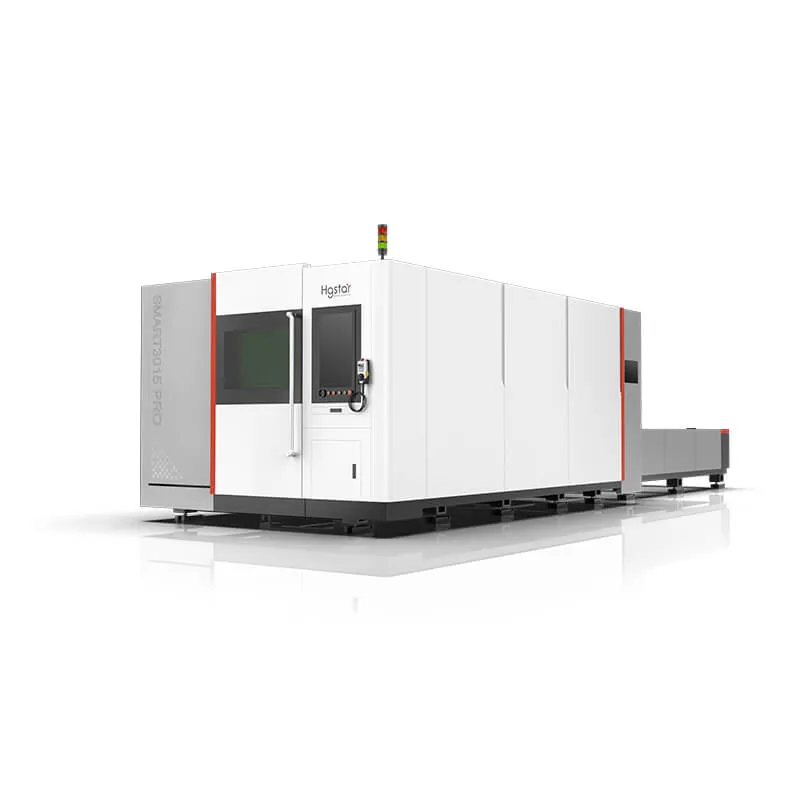

High Power Fiber Laser Metal Cutting Machine with Exchange Pallet

Model: WALC-Q Series

Category: Laser Cutting Machine

Brand Name: HG Smart

Laser power: 6000-30000W

Uses: can cut stainless steel, carbon steel, brass, aluminum, and other material plates and pipes.

Lightweight WALC-Q series high-power laser cutting machine is a processing equipment used for construction machinery, steel towers and adapting to intelligent production lines and smart factories. Its characteristics: high dynamics, high speed, and high precision. The bed and the workbench are separated, good openness, excellent dust removal effect, suitable for automated production line.

Industrial Fiber Laser Metal Cutting Machine Parameter

Machine Model
WALC-Q

Cutting Area (L×W)

3050mm×1530mm
Laser Source
1000W – 6000W
CNC System
FSCUT 2000
Laser Cutting Head
BM111 F125mm
Max Moving Speed
120m/min, Acceleration is 1.0G
Position Accuracy (X and Y axis)
±0.02mm
Reposition Accuracy (X and Y axis)
±0.03mm
Power Supply Requirement
380V 50/60Hz 45KVA
Machine weight
≤7000 Kg
Appearance size
8880mm×2920mm×2500mm

Industrial Fiber Laser Metal Cutting Machine Video

Features of Industrial Fiber Laser Metal Cutting Machine


Security and non-pollution

With a completely enclosed design;The observation window is made of laser-protective glass that meets European CE standards.

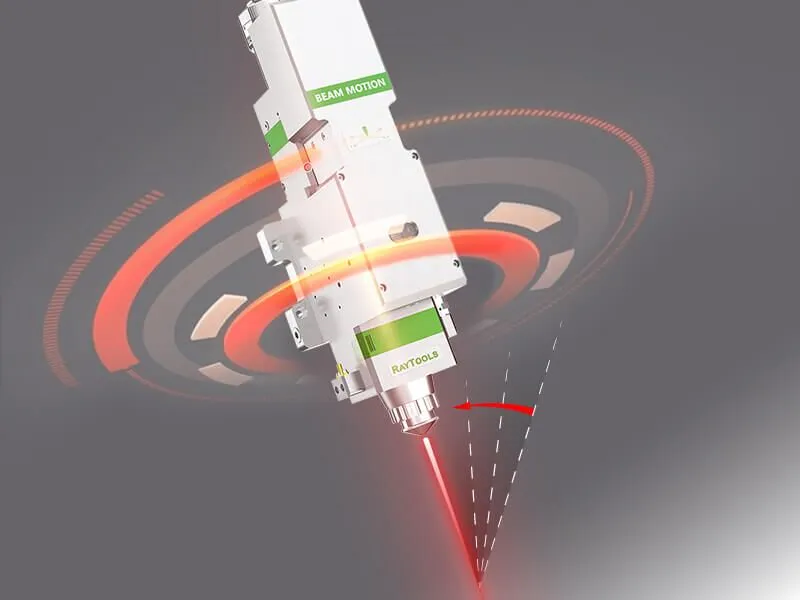

Without Manual Focusing, Autofocus Laser Cutting Head

The software automatically adjusts the focusing lens to achieve automatic perforating and cutting of various thickness plates. The speed of automatically adjusting the focus lens is ten times faster than manual adjustment.

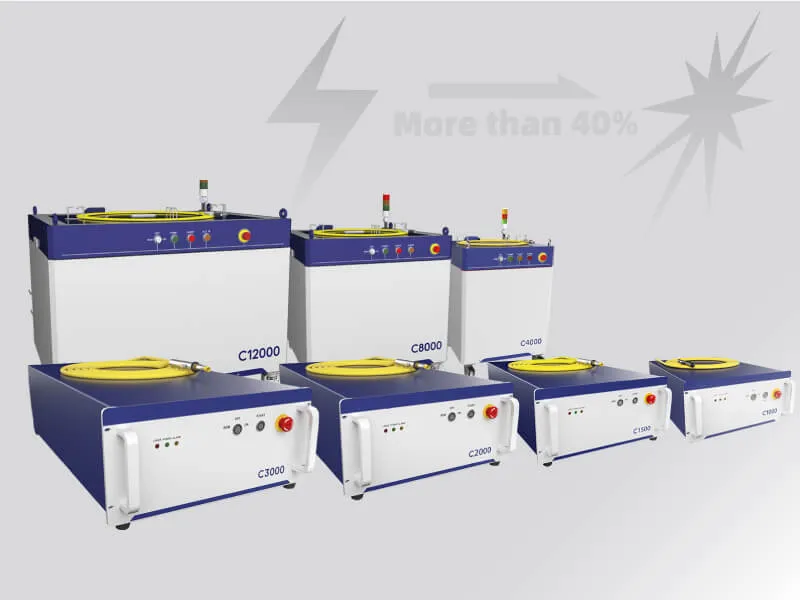

Fiber Lasers Source

Raycus Multi-module CW Fiber Lasers range in power from 1,000W to 6000W and feature high electro-optical conversion efficiency, high light beam quality, high energy density, wide modulation frequency, high reliability, long service life, maintenance-free operation.

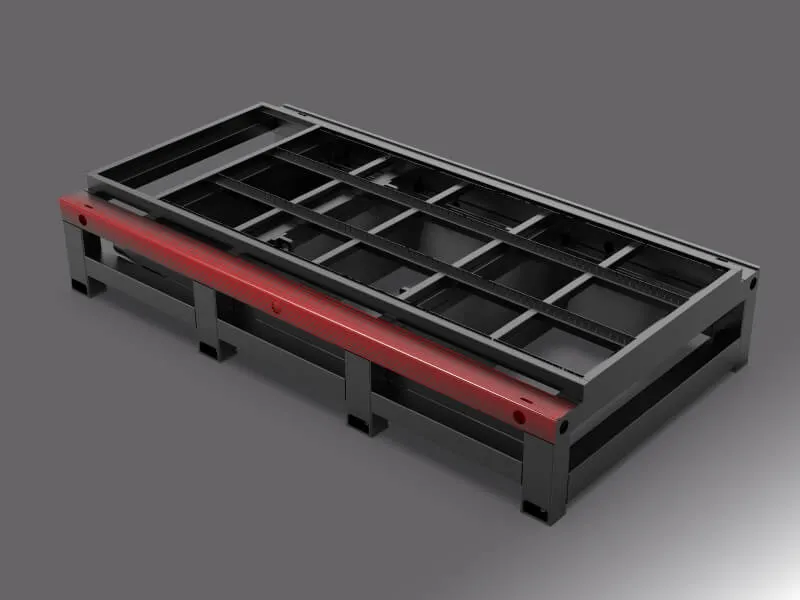

Laser Cutting Machine Welded Bed

The high strength machine bed is treated with a stress relief annealing method at 600°C, which results in a strong structure rigidity; integral mechanical structures have the advantages of small deformation, low vibration, and extremely high precision.

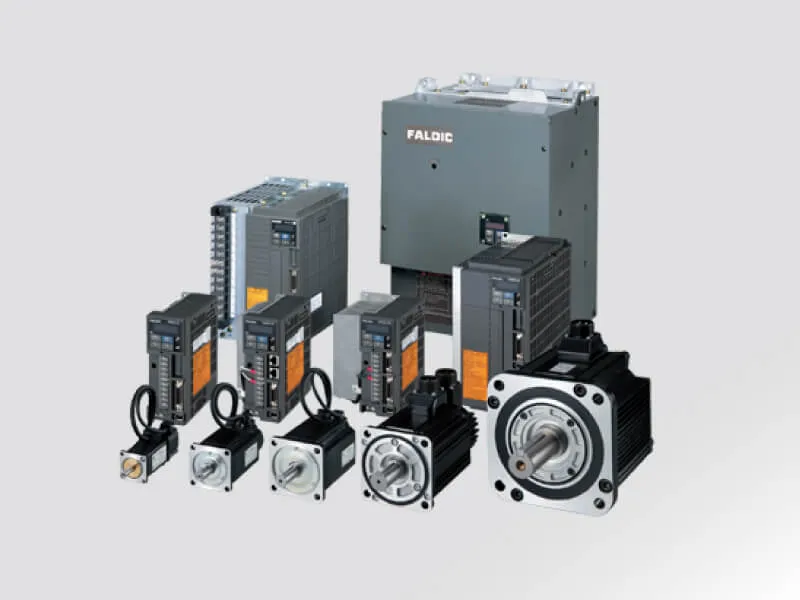

Servo and Motor

JAPAN Fuji servo high speed srvo motor
Effectively reduce beam speed, make cutting and machine more stable, and extend machine life.
