High Precision Fiber Laser Cutting Machine

Model: SMART LCP Series

Category: Laser Cutting Machine

Brand Name: HG Smart

Laser power: 1000W-6000W

Uses: It can cut stainless steel, carbon steel, galvanized sheet, electrolytic sheet, brass, aluminum, various alloy sheets, rare metals and other metals

The fiber laser cutting machine is the best choice for home use with the small volume. Especially equipped with the protective device, it can keep operators more safe. This fiber laser cutting machine can realize what you want to cut on metal material with high power. That is to say that you can approach it with the minimum money.

Fiber Laser Metal Cutting Machine Parameter

Machine Model
SMART LCP 4050/6080
Laser Power
500W、1000W、1500W、2000W、3000W、QCW750
Wavelength
1070 ± 10nm
CNC System
FSCUT 2000
Laser Cutting Head
F125mm
Max Moving Speed
60m/min, Acceleration is 1.0G
Position Accuracy (X and Y axis)
±0.03mm
Reposition Accuracy (X and Y axis)
±0.03mm
Power Supply Requirement
220V 50/60Hz)(380V 50/60Hz)

Fiber Laser Metal Cutting Machine Video

Features of Fiber Laser Metal Cutting Machine

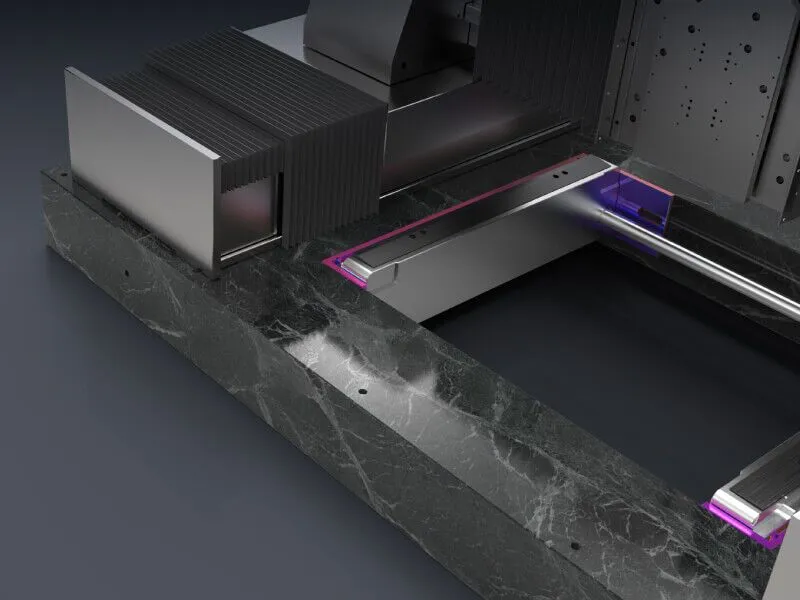

High stability machine bed

The equipment platform adopts marble platform to eliminate vibration error when the linear motor moves. Marble is not sensitive to temperature deformation, so as to reduce the influence of weather on the equipment.

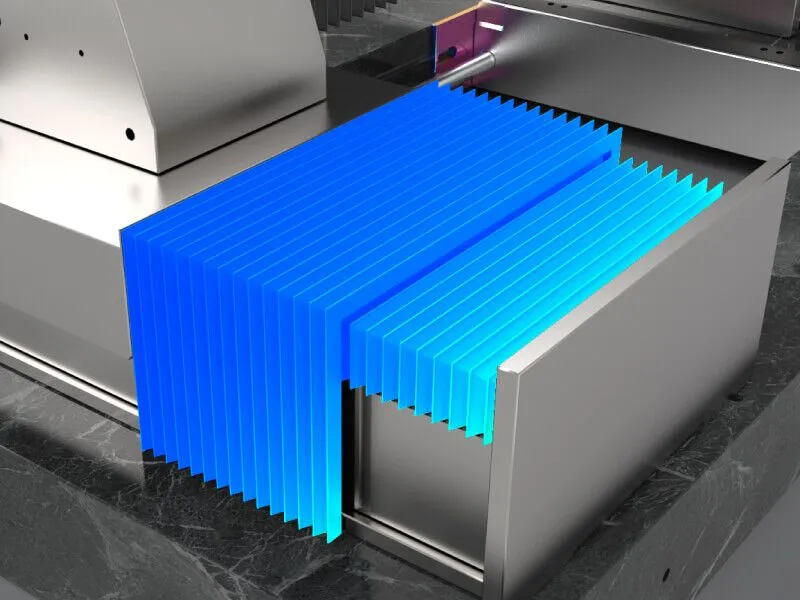

Double-layer sealing structure

The guideway of the equipment adopts double-layer sealing structure with independent design, which effectively prevents dust from affecting the linear motor and guideway.

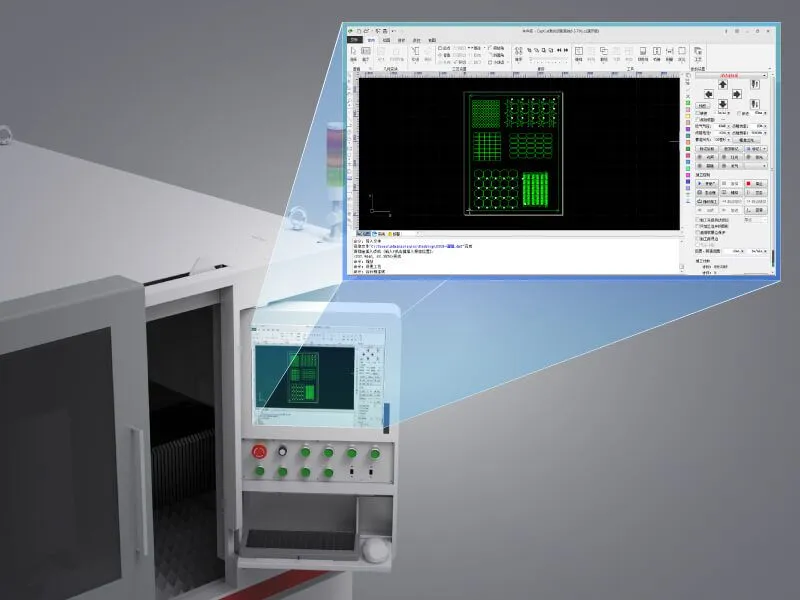

Operation screen rotating shaft design

Convenient for operators to debug parameters, the software uses universal software, cutting path automatic optimization, reduce the use of difficulty, compatible with a variety of file formats DXF, Gerber, etc.

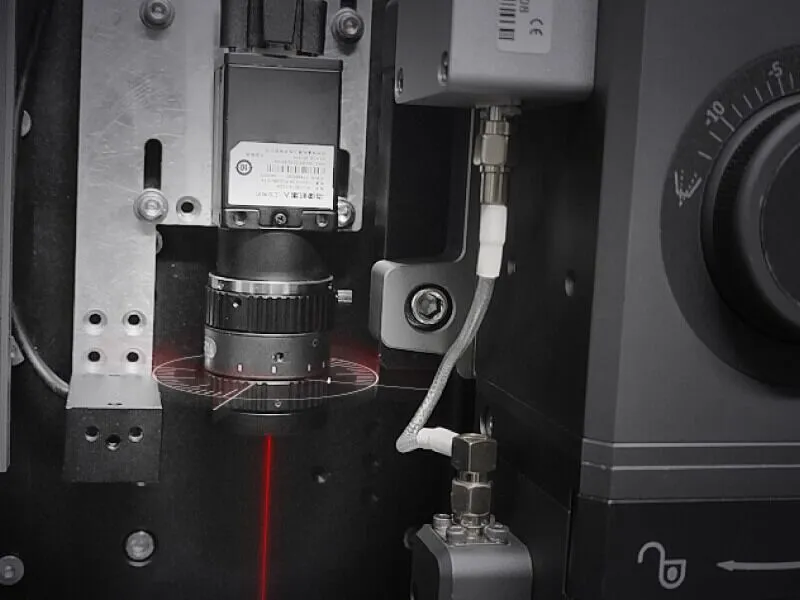

Visual assist positioning

Ensure accurate processing position, higher fault tolerance rate.

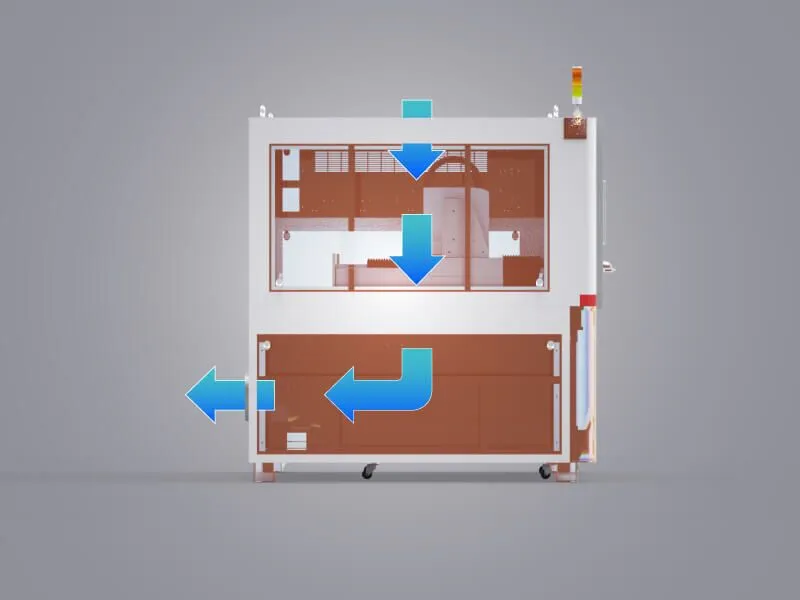

The equipment adopts the upper air shower structure

So that the upper part of the equipment produces downward air pressure, effectively control the dust of the upper products of the equipment, but also reduce the influence of dust on the moving parts, matching our company’s air suction device better effect.
