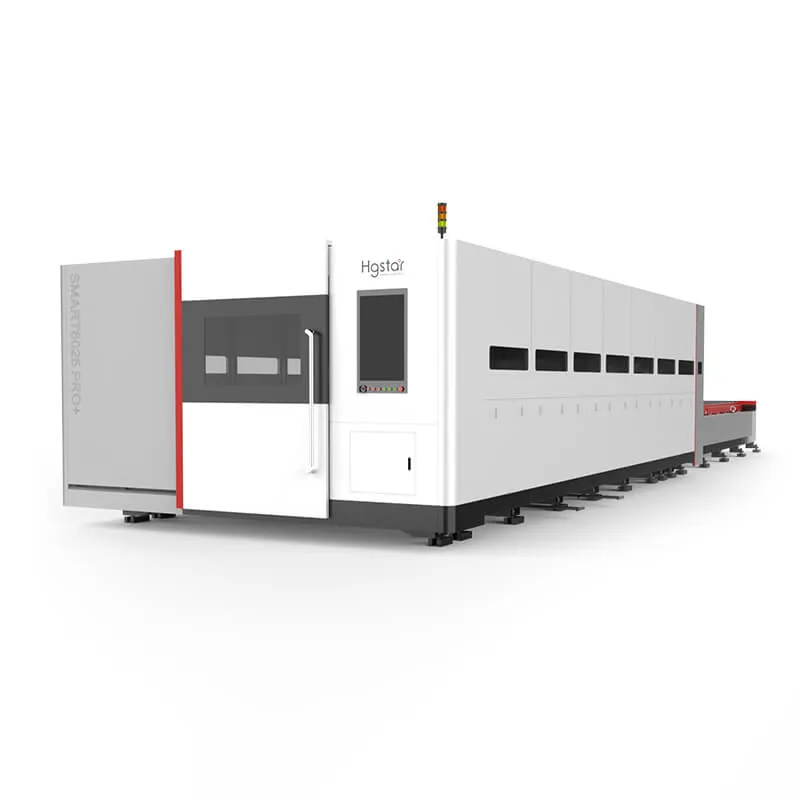

High power fiber laser cutting machine 6KW-20KW

Model: SMART Pro+ Series

Category: Laser Cutting Machine

Brand Name: HG Smart

Laser power: 6000W-20000W

Uses: can cut stainless steel, carbon steel, brass, aluminum, and other material plates and pipes.

High-power fiber laser metal cutting machines with exchange trays offer faster cutting speeds and high power laser sources (6000w+) compared to other cutting solutions, now available at affordable prices for high power laser cutting machines.

High Power Fiber Laser Cutting Machine Parameter

Machine Model
SMART Pro+
Cutting Area (L×W)
6100mm×2550mm
Laser Source
6000W – 20000W
CNC System
FSCUT 5000
Laser Cutting Head
BM115 F200mm Pro Cutter 2.0 F200
Max Moving Speed
120m/min, Acceleration is 1.2G
Position Accuracy (X and Y axis)
±0.02mm
Reposition Accuracy (X and Y axis)
±0.03mm
Power Supply Requirement
380V 50/60Hz 65KVA
Machine weight
≤17000 Kg
Appearance size
14700mm×4200mm×2440mm

Industrial Fiber Laser Metal Cutting Machine Video

Features of High Power Fiber Laser Cutting Machine


Security and non-pollution

With a completely enclosed design;The observation window is made of laser-protective glass that meets European CE standards.

Without Manual Focusing, Autofocus Laser Cutting Head

The software automatically adjusts the focusing lens to achieve automatic perforating and cutting of various thickness plates. The speed of automatically adjusting the focus lens is ten times faster than manual adjustment.

Fiber Lasers Source

Raycus Multi-module CW Fiber Lasers range in power from 1,000W to 6000W and feature high electro-optical conversion efficiency, high light beam quality, high energy density, wide modulation frequency, high reliability, long service life, maintenance-free operation.

Laser Cutting Machine Welded Bed

The high strength machine bed is treated with a stress relief annealing method at 600°C, which results in a strong structure rigidity; integral mechanical structures have the advantages of small deformation, low vibration, and extremely high precision.

Servo and Motor

JAPAN Fuji servo high speed srvo motor
Effectively reduce beam speed, make cutting and machine more stable, and extend machine life.
